Solid-State
Hard Drive has been launched for years and performance is satisfied with most
users.
In the past, it’s limited with SATA2 3Gb/s bandwidth, so the SSD
performance hadn’t been improved for years.
SSD max performance in the past
few years was just over 200MB/s.
During that time, there were many high end
MBs supported SATA3, but the performance improvement was not much.
SSD
performance bottleneck started to change from Jan 2011, Intel Sandy Bridge
native support SATA3.
Although, AMD launched 990FX and A75 middle year also
native support SATA3.
It makes SSD own higher bandwidth. SATA3 supports
6Gb/s is 2 times faster than SATA2.
Currently, SSD has SATA2 and SATA3.
SATA3 read write performance is over 300MB/s.
Windwithme previously share
Intel 510 Series which support SATA3 450/220 MB/s SSD.
This review is another
SATA3 SSD. The performance is different with Intel 510 SSD.
USA brand
CORSAIR has variety product line which you can see its importance in SSD
field.
This is CORSAIR latest product line, Force Series GT which use
SandForce controller.
GT series packing is eye-catching red is different with
Force Series black color.
Content
Left
side is Force GT 120GB and right side is black 3.5” adaptor and screws.
Product
is 2.5” and capacity is 120GB. Official spec with ATTO Disk Benchmark is 555/515
MB/s.
Random 4K max writing is 85000 IOPS. It’s almost SSD highest 4K
spec.
Besides
the prominent black, the shell is matt metal surface texture.
CORSAIR
provides 3 years warranty and capacity has 60/90/120/180/240/480G.
Users can
choose SSD capacity by budget and demand.
The
back is black metal material. The hair-line surface design is really improving
the texture.
Lower-Right is SATA3 and power connector. The outlook is same as
SATA1 and SATA2. You have to distinguish by packing or sticker.
You can see
other 2 silver laser stickers. It’s for warranty and internal hardware safety. I
recommend you to keep it in origin.
3.5”
adaptor is very useful.
If you are using SSD in DeskTop PC, you can save
money and time to find an extra one.
Force
GT uses SandForce latest SF-2281 controller which is very popular
now.
CORSAIR has used in Force GT since June. It’s very early to use this
controller/
For Force GT internal structure, you can find in Google. I will
not share here.
Let’s start from desktop platform which uses GIGABYTE
Z68X-UD3H-B3.
It provides 2 native white SATA3. This MB C/P value is good in
Z68 market.
The price is a little lower than Z68 mainstream. It’s GIGABYTE
new black design. It also includes most necessary spec.
The
chipset is Intel latest Z68. It bundles ISRT software to set HDD and SSD as
RAID0 mode to make SSD as system accelerating cache.
According to small
capacity SSD users, this is very good features. If SSD capacity is over 60GB,
you can set it as drive C is better.
Test
Configuration
CPU: Intel Core i7-2700K
MB: GIGABYTE Z68X-UD3H-B3
DRAM:
CORSAIR CMZ8GX3M2A1866C9R
VGA: Intel HD Graphics 3000
HD: CORSAIR Force
Series GT 120GB / Intel 510 SERIES 120GB
POWER: Thermaltake TR2
450W
Cooler: Intel original cooler
OS: Windows7 Ultimate 64bit
CORSAIR
Force Series GT 120GB install at SATA3.
Non-OS driver is without any
data.
HD Tune Pro 4.61 Benchmark
Read - Average 519.6 MB/s Access Time
0.113ms
Write - Average 337.2 MB/s Access Time 0.183ms
Random
Access
Extra
tests
Sequential middle
Read - 413.582 MB/s
Write - 421.780
MB/s
Random seek 4KB 34451 IOPS
File
Benchmark over 1024k test, the Read is over500 MB/s.
ATTO DISK Benchmark over
32k test, the max Read is 560.5 Mb/s and Write is 500.0 MB/s.
ADIA64
Read Test Suite - Linear Read(Middle) 527.0 MB/s
SSD Benchmark TOTAL
4310.19
CrystalDiskMark
Seq Read - 513.6 MB/s Write - 145.6 MB/s
<All 0xFF, 1Fill> Read -
533.2 MB/s Write - 488.3 MB/s
<All 0x00, 0Fill> Read - 533.7 MB/s Write
- 489.2 MB/s
CrystalDiskMark
default test is random. You can see the Write performance is lower.
This is
because of SandForce controller structure. The algorithm will be lower in this
software default mode.
On the left hand side, CrystalDiskMark change to
sequence mode, the Write performance is close to official spec.
ADIA64
Linear Read Average 522.7 MB/s
AS SSD Benchmark - 491
Seq Read - 510.75
MB/s Write - 111.09 MB/s
4K-64Thrd Read - 106.48 MB/s Write - 116.18
MB/s
AS
SSD Benchmark in Seq Write is similar to CrystalDiskMark.
However, this
software doesn’t provide sequence mode to test.
AS SSD
Benchmark
4K-64Thrd Read - 27259 iops Write - 29741 iops
In
Compression-Benchmark, you can see the Read speed is very stable.
Write curve
is climbing from 150 MB/s to 470 MB/s.
IOMETER 2008
4KB Test - 100%
Write / 100% Seupential
Total I/Os per Second 86253.69
4K
Write in IOMETER 2008 test can achieve 86K IOPS which is higher than official
spec 85K.
4K performance is key strength of SandForce controller. This
transfer rate is the best in the current market.
Force GT bundle Z68 platform
almost can reach the highest speed except some software cannot unleash real
SandForce Write performance.
Even Z68 chipset, different MB have the
performance gap. You have to beware of it.

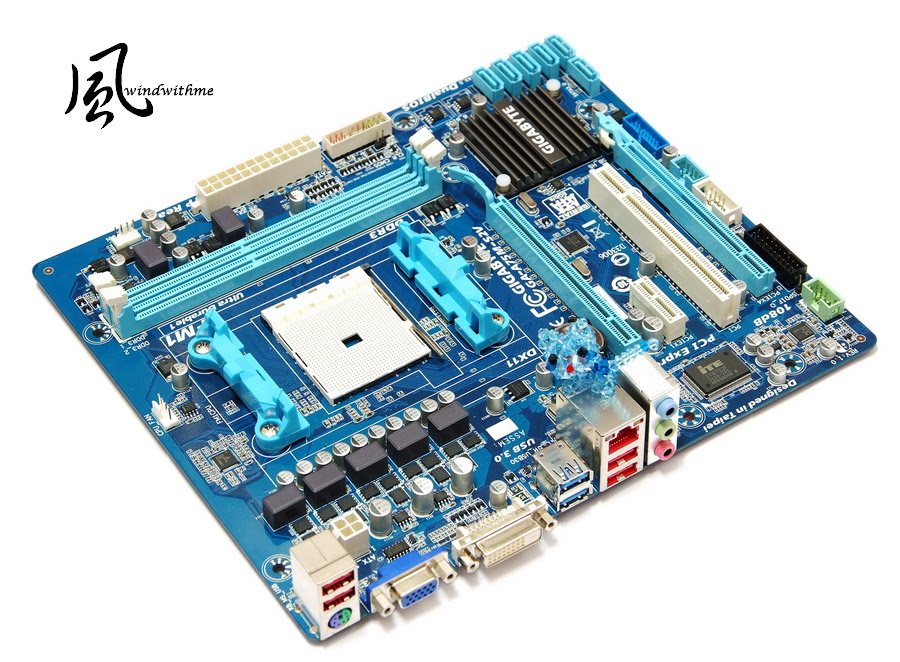

2nd desktop PC test is
GIGABYTE A75M-S2V.
APU structure is AMD latest key product. A75 chipset
provides 6 SATA3 and the scalability is better.
I use same brand MB to avoid
other factors to impact SSD performance besides chipset.
Formerly,
AMD chipset IO performance is always lower than Intel. The SATA transfer rate is
also lower.
A75 is parity product which native support SATA3 and USB3.0. It’s
APU advantage so far.
I hope the native SATA3 chipset can enhance AMD
platform transfer performance.
Test
Configuration
CPU: AMD A8-3850
MB: GIGABYTE A75M-S2V
DRAM: CORSAIR
CMZ8GX3M2A1866C9R
VGA: AMD Radeon HD6550D
HD: CORSAIR Force Series GT
120GB / Intel 510 SERIES 120GB
POWER: Thermaltake TR2 450W
Cooler:
Thermaltake BigTyp 14Pro
OS: Windows7 Ultimate 64bit
CORSAIR
Force Series GT 120GB install at blue SATA3.
Non-OS driver is without any
data.
HD Tune Pro 4.61 Benchmark
Read - Average 509.8 MB/s Access Time
0.127ms
Write - Average 400.9 MB/s Access Time 0.181ms
Random
Access
Extra
tests
Sequential middle
Read - 413.582 MB/s
Write - 411.701
MB/s
Random seek 4KB 29152 IOPS
File
Benchmark over 2048k test, the Read is over 500 MB/s.
ATTO DISK Benchmark
over 512k test, the max Read is 546.5 Mb/s and Write is 505.2 MB/s
ADIA64
Read Test Suite - Linear Read(Middle) 527.9 MB/s
SSD Benchmark TOTAL
3926.22
CrystalDiskMark
Seq Read - 515.9 MB/s Write - 136.6 MB/s
<All 0xFF, 1Fill> Read -
511.2 MB/s Write - 494.3 MB/s
<All 0x00, 0Fill> Read - 510.0 MB/s Write
- 495.1 MB/s
ADIA64
Linear Read Average 500.1 MB/s
AS SSD Benchmark - 462
Seq Read - 505.29
MB/s Write - 78.69 MB/s
4K-64Thrd Read - 118.10 MB/s Write - 96.63
MB/s
AS
SSD Benchmark
4K-64Thrd Read - 30232 iops Write - 24738 iops
IOMETER
2008
4KB Test - 100% Write / 100% Seupential
Total I/Os per Second
66899.10
AMD
A75 SATA3 performance is a little lower than Intel Z68 mostly.
Comparing to
formerly AMD chipset performance, A75 has been improved. The gap with Intel
chipset is smaller.
AMD structure has no SSD accelerating mode. If you would
like to use SSD, I recommend capacity is from 90 to 120GB.
Drive C, system
drive, can use SSD and the data drive can use cheap 2TB HDD to build the ideal
system.
Third platform is NoteBook, acer TimelineX 3830TG.
It’s Intel
2nd generation Core i and chipset is Intel HM65.
The first time I saw 3830TG
was Computex. I am impressed by its appearance.
Main
tone is blue and the cover is aluminum. The thickness is under1 inch. It built
in individual graphic and long duration battery.
The design is similar to
business style. The CPU and 3D performance is mid-end above. It’s a kind of
balance model.
3830TG price is also very parity. The weakness is 1.87Kg, a
little bit heavy. However, it doesn’t impact the C/P value of this NB.
CORSAIR
Force Series GT 120GB install at SATA3 as system drive.
HD Tune Pro 4.60
Benchmark
Read - Average 458.5 MB/s Access Time 0.178ms
ATTO DISK
Benchmark over 512k test, the max Read is 550.3 Mb/s and Write is 510.0
MB/s.
File
Benchmark over 2048k test, the Read can achieve almost 500
MB/s.
CrystalDiskMark
<All 0x00, 0Fill> Read - 472.3 MB/s Write -
459.8 MB/s
<All 0xFF, 1Fill> Read - 478.9 MB/s Write - 450.2
MB/s
AS
SSD Benchmark - 423
Seq Read - 478.14 MB/s Write - 118.33 MB/s
4K-64Thrd
Read - 107.38 MB/s Write - 121.99 MB/s
Set
Force GT as OS drive, you can see the performance drop a little, but it’s
acceptable.
4K performance is much lower than PC. I hope 3830TG can improve
it by updating BIOS.
NB SSD performance normally is lower than PC. However,
Intel chipset still has the standard level for transferring
performance.
BootRacer
Time to Logon 9 seconds
Time to Desktop 16
seconds
Maybe
some readers think it’s just benchmark. They cannot feel the real
performance.
I change 3830TG drive to TOSHIBA MK6461GSY 640GB 7200rpm and
test the booting time.

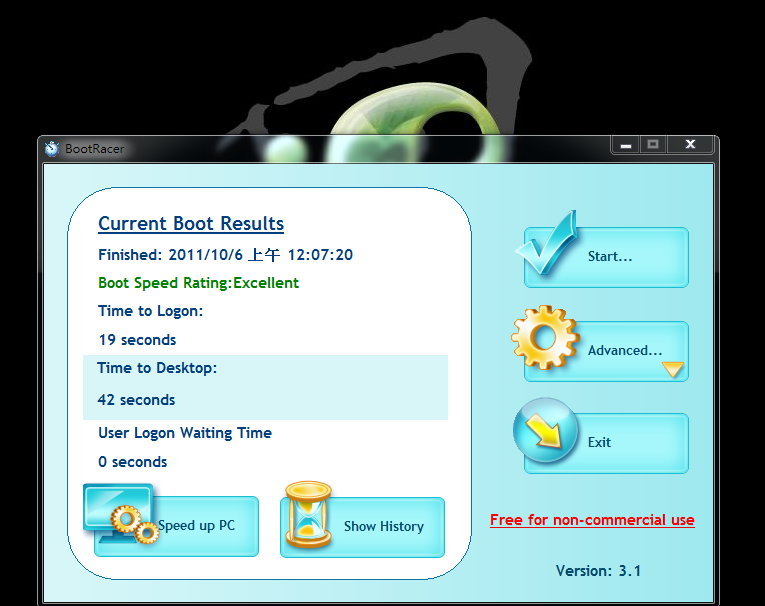

BootRacer
Time to Logon 19 seconds
Time to
Desktop 42 seconds
TOSHIBA
7200rpm 640GB HDD is 42 seconds and CORSAIR Force GT SSD 120GB is only 16
seconds.
OS are both Windows7 64bit SP1 with same drivers and software. Force
GT speed is 2.63 times faster.
SSD is really helpful for NoteBook system
performance. Formerly, NoteBook hardware spec is always much lower than
PC.
Using SSD can improve system performance which you can feel since system
bootup, shutdown and execute files.
In 2011, SATA3 spec becomes more
popular and it improves SSD performance indirectly.
Formerly, entry 32GB SSD
price can get 64GB now. User also can have bigger capacity.
64GB mid-end SSD
market now goes for 128GB due to the price drop.
SSD capacity and price
cannot be comparing with HDD. However, they are looking for different
applications.
By the other hand, 128GB in PC platform can be drive C, system
drive and replace HDD in NteBook.
This year, SSD price drop make user have
higher capacity and the applications are wider.
For
SATA3 SSD, there are several types of controllers.
However, many SATA3 SSD
Write speed is only 200~300 MB/s.
CORSAIR Force GT uses SandForce SF-2281
controller chip, the max Write can achieve over 500 MB/s.
For 4K performance,
it’s almost the best solution in current SSD structure. It’s a very good
controller in SATA3 SSD.
Force GT appearance is eye-catching and good
texture. The capacity has 60~480GB for users to choose.
Plus CORSAIR has good
reputation in after service and firmware update, you must put this model in your
new SSD wish list.
Above Force GT benchmark is for your reference.
